Anode Retrofit & CP Systems Corrosion Protection for Marine Assets
Cathodic Protection Services
Tethys Plantgeria specializes in the design, installation, and maintenance of sacrificial anode systems and impressed current cathodic protection (ICCP) for offshore structures, pipelines, and marine infrastructure. Our corrosion engineering services extend asset lifespan while maintaining regulatory compliance.
Sacrificial Anode Services
- Anode retrofit design and engineering
- Underwater anode replacement (diver/ROV)
- Zinc, aluminum, and magnesium alloy anodes
- Bracelet anode installation for pipelines
CP Monitoring & Maintenance
- CP potential surveys (-850mV criterion)
- Reference electrode calibration
- Anode consumption rate analysis
- ICCP system troubleshooting
Technical Specifications
Anode Specifications
| Type | Alloy | Capacity | Applications |
|---|---|---|---|
| Zinc | ASTM B418 Type II | 780 Ah/kg | Seawater structures |
| Aluminum | Al-Zn-In | 2,680 Ah/kg | Pipelines, jackets |
| Magnesium | AZ-63 | 1,230 Ah/kg | Freshwater/brackish |
Compliance Standards
- DNV-RP-B401 (Anode design & installation)
- NACE SP0169 (CP criteria)
- ISO 15589-2 (Marine CP)
- API RP 651 (Aboveground storage tanks)
Project Applications
Offshore Platforms

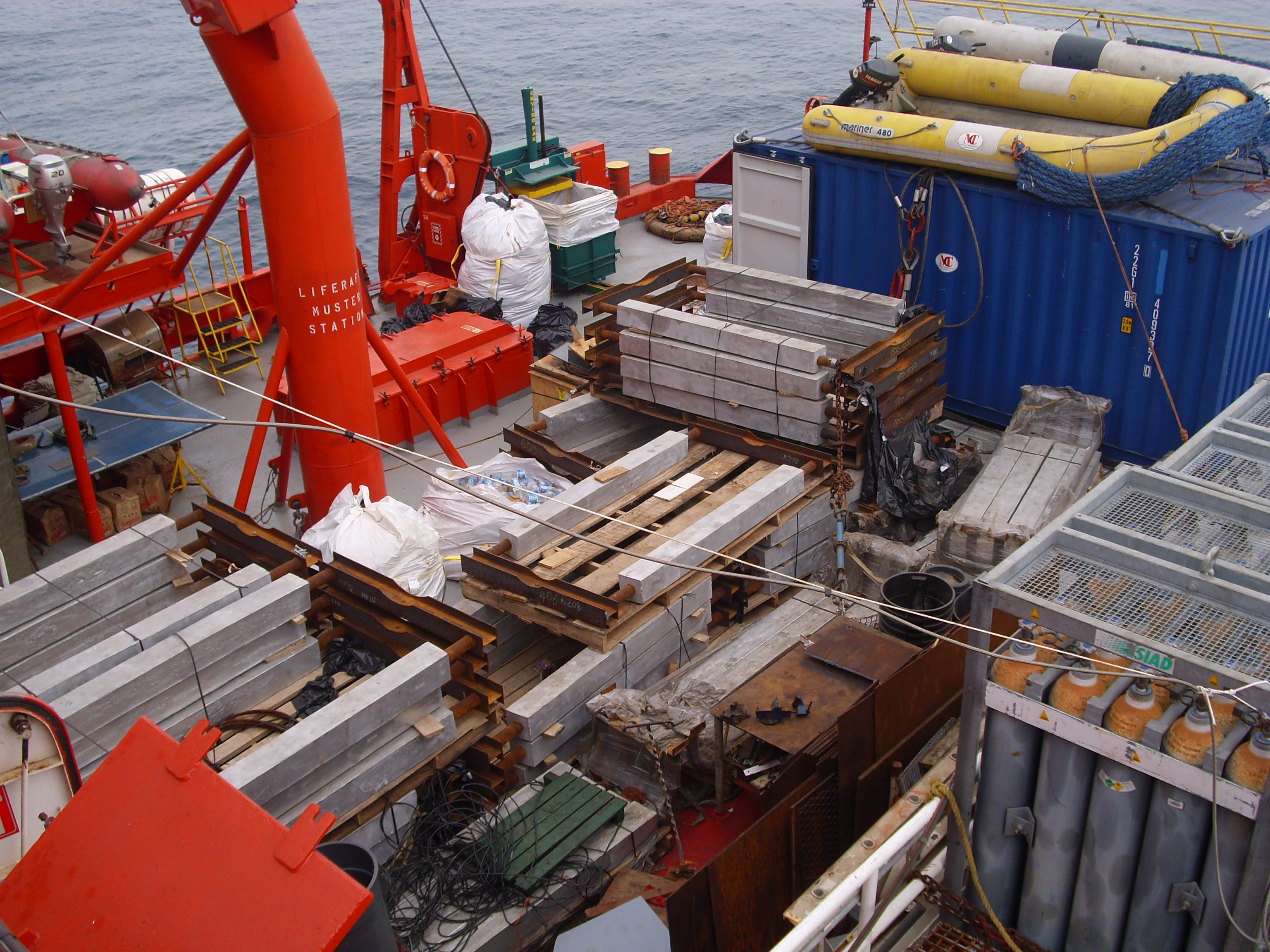

Full anode replacement on aging jackets with minimal production downtime
Subsea Pipelines

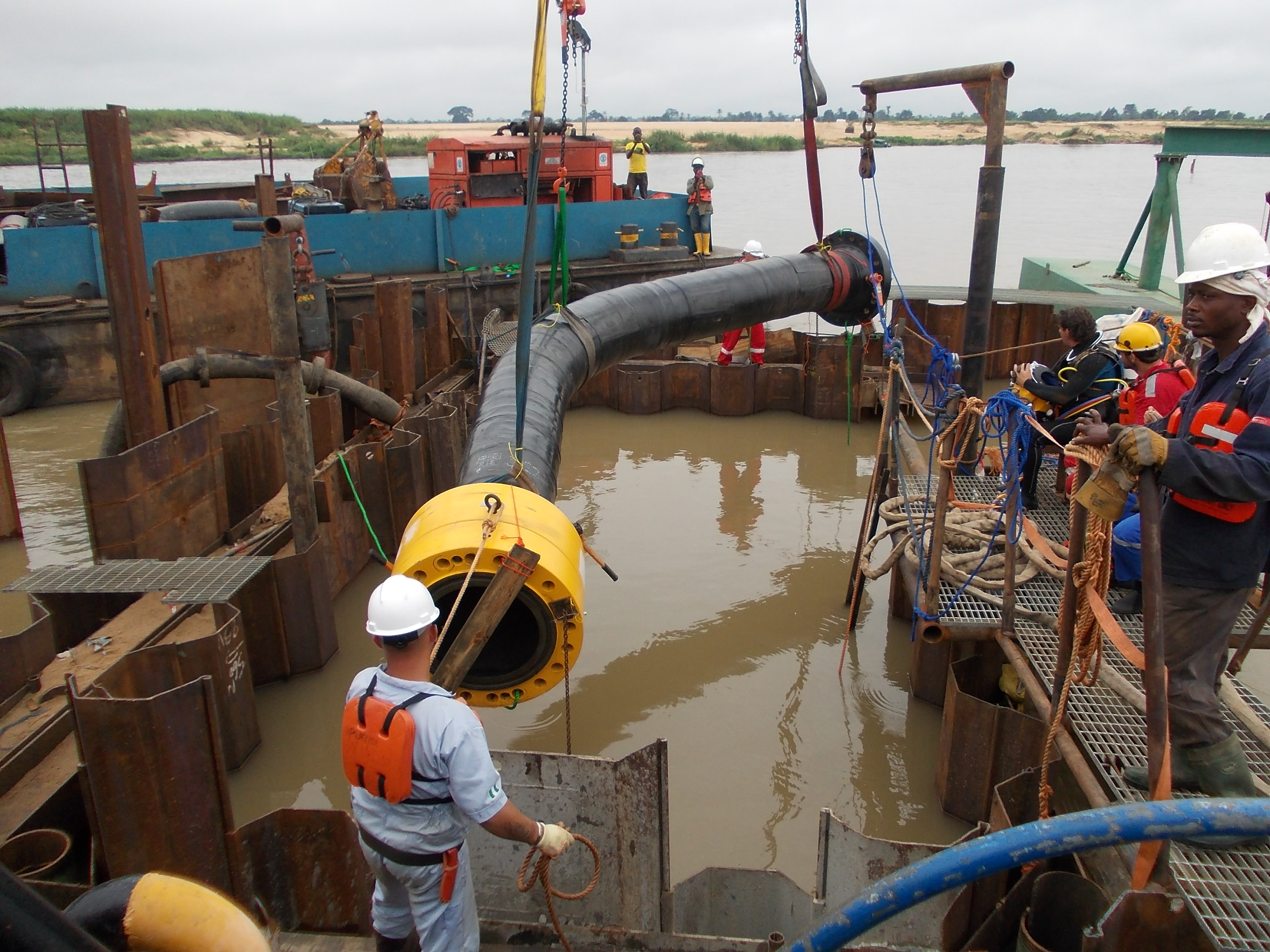

Retrofit of bracelet anodes with ROV-assisted installation

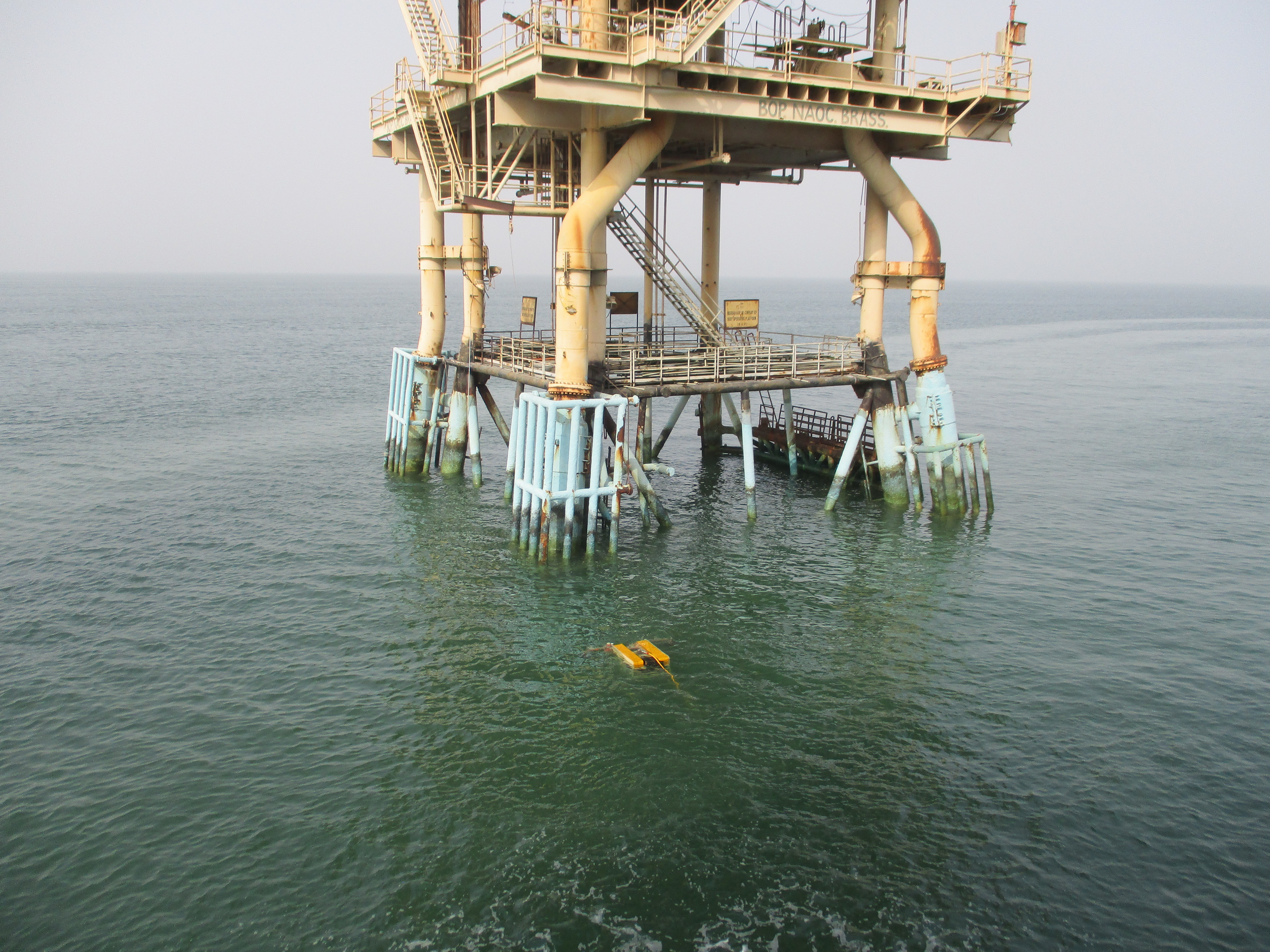

Floating Structures
ICCP system maintenance and reference electrode replacement
Need Corrosion Protection Services?
Our CP specialists can design and implement optimal protection systems for your marine assets.
